FILTER BY:    All HMIs Power Supplies Controller Cables


HMIs

eMT3070A

eMT3070A - Display: 7" TFT Widescreen

  • Resolution (W x H): 800 x 480
  • Processor: 32Bit RISC CPU 600MHz
  • Enclosure: Aluminum
  • Touch Panel Type: 4-wire Resistive Type
  • SD Card Slot: SD / SDHC
  • USB Host/Client: USB 2.0 x 1/ USB 2.0 x 1
  • Ethernet Port: 10/100 Base-T
  • COM Port: COM1(RS-232/RS-485 2W/4W),
    COM3(RS-232/RS-485 2W) Supports MPI 187.5K
  • Audio: Audio Line Out - 3.5 mm jack x 1
  • CAN bus: CANopen Protocol

eMT3105P

eMT3105P - Display: 10.4” TFT LCD

  • Resolution (W x H): 800 x 600
  • Processor: 32Bit RISC CPU 800MHz
  • Enclosure: Plastic
  • Touch Panel Type: 4-wire Resistive Type
  • SD Card Slot: SD / SDHC
  • USB Host/Client: USB 2.0 x 1/ USB 2.0 x 1
  • Ethernet Port: 10/100 Base-T
  • COM Port: COM1(RS-232/RS-485 2W/4W),
    COM3(RS-232/RS-485 2W) Supports MPI 187.5K
  • Audio: Audio Line Out - 3.5 mm jack x 1
  • CAN bus: CANopen Protocol

eMT3120A

eMT3120A - Display: 12.1” TFT LCD

  • Resolution (W x H): 1024 x 768
  • Processor: 32Bit RISC CPU 800MHz
  • Enclosure: Aluminum
  • Touch Panel Type: 4-wire Resistive Type
  • SD Card Slot: SD / SDHC
  • USB Host/Client: USB 2.0 x 1/ USB 2.0 x 1
  • Ethernet Port: 10/100 Base-T
  • COM Port: COM1(RS-232/RS-485 2W/4W),
    COM3(RS-232/RS-485 2W) Supports MPI 187.5K
  • Audio: Audio Line Out - 3.5 mm jack x 1
  • CAN bus: CANopen Protocol

eMT3150A

eMT3150A - Display: 15” TFT LCD

  • Resolution (W x H): 1024 x 768
  • Processor: 32Bit RISC CPU 800MHz
  • Enclosure: Aluminum
  • Touch Panel Type: 4-wire Resistive Type
  • SD Card Slot: SD / SDHC
  • USB Host/Client: USB 2.0 x 1/ USB 2.0 x 1
  • Ethernet Port: 10/100 Base-T
  • COM Port: COM1(RS-232/RS-485 2W/4W),
    COM3(RS-232/RS-485 2W) Supports MPI 187.5K
  • Video Input Port: NTSC/PAL RCA x 2
  • Audio: Audio Line Out - 3.5 mm jack x 1
  • CAN bus: CANopen Protocol

POWER SUPPLIES

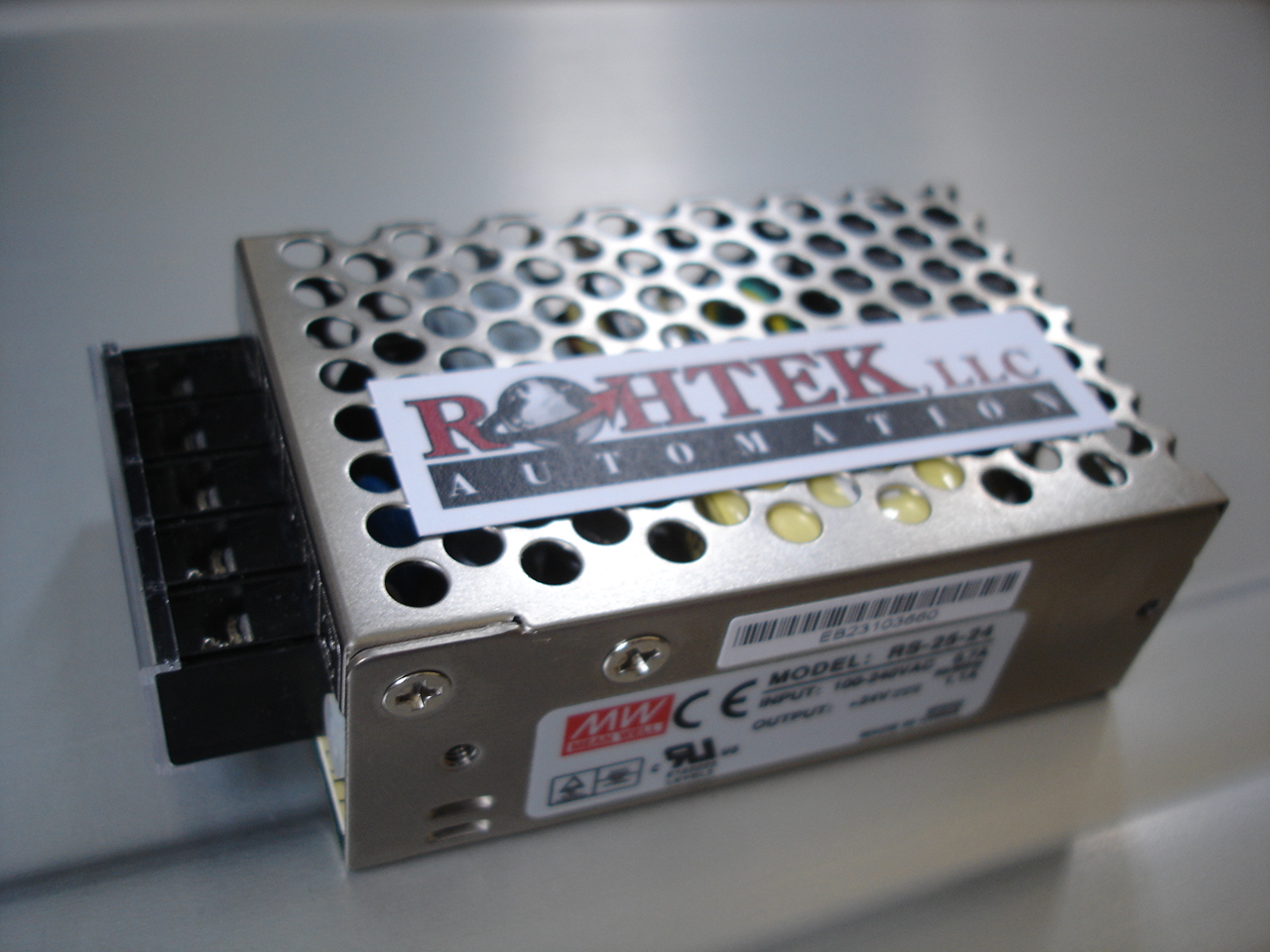

RS-25 series 25W Single Output Switching Power Supply

RS-25 series - 25W Single Output Switching Power Supply

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty
  • long life electrolytic capacitors
  • No load power consumption<0.5W

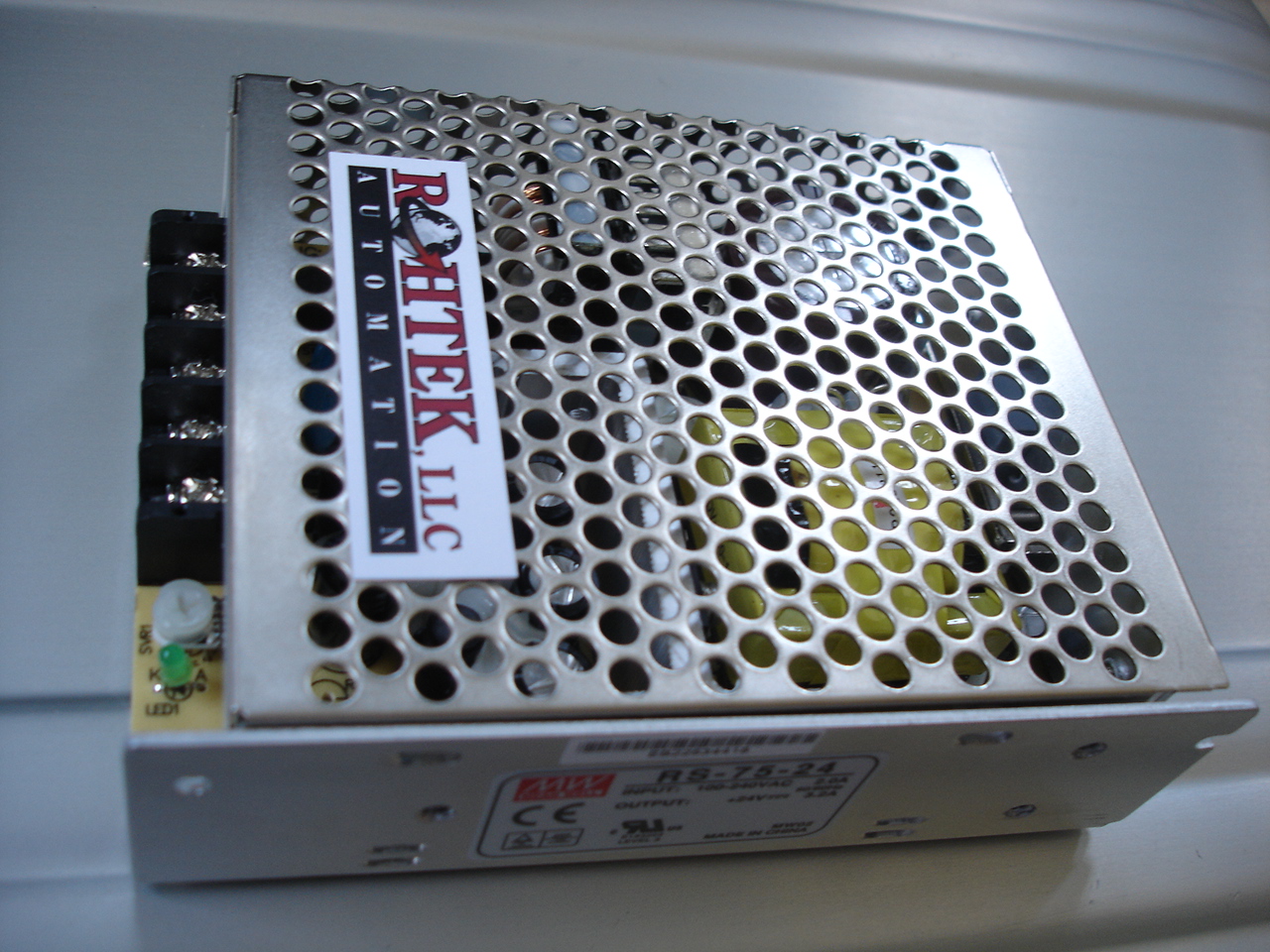

RS-75 series 75W Single Output Switching Power Supply

RS-75 series - 75W Single Output Switching Power Supply

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty
  • long life electrolytic capacitors
  • No load power consumption<0.5W

CONTROLLER CABLES

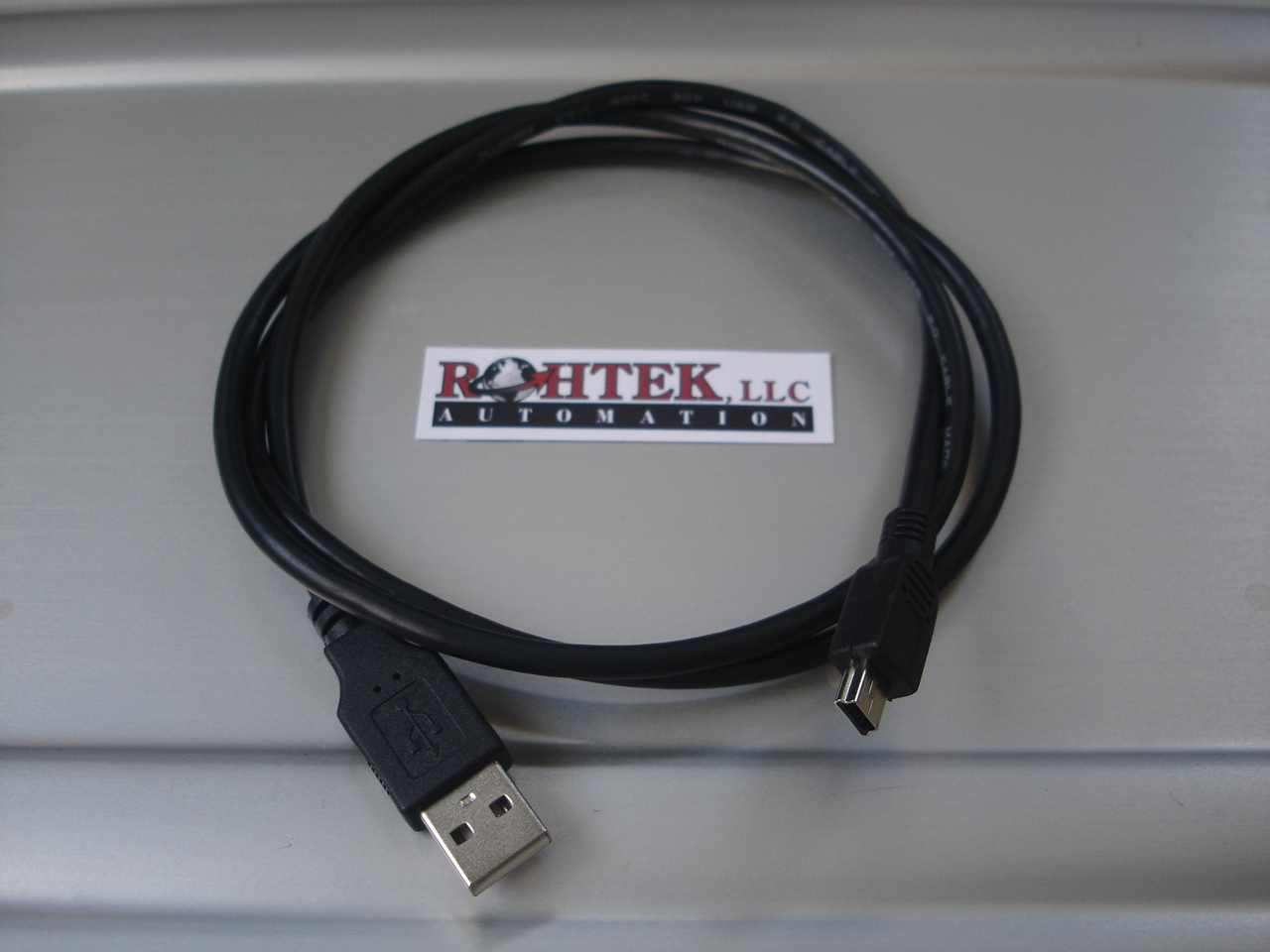

USB Cable - 3'

  • 201109-001 REV.A
  • OVERMOLD SERIES "A" PLUG
  • SERIES "MINI-B" PLUG
  • SERIES "A" PLUG
  • SERIES "B" PLUG

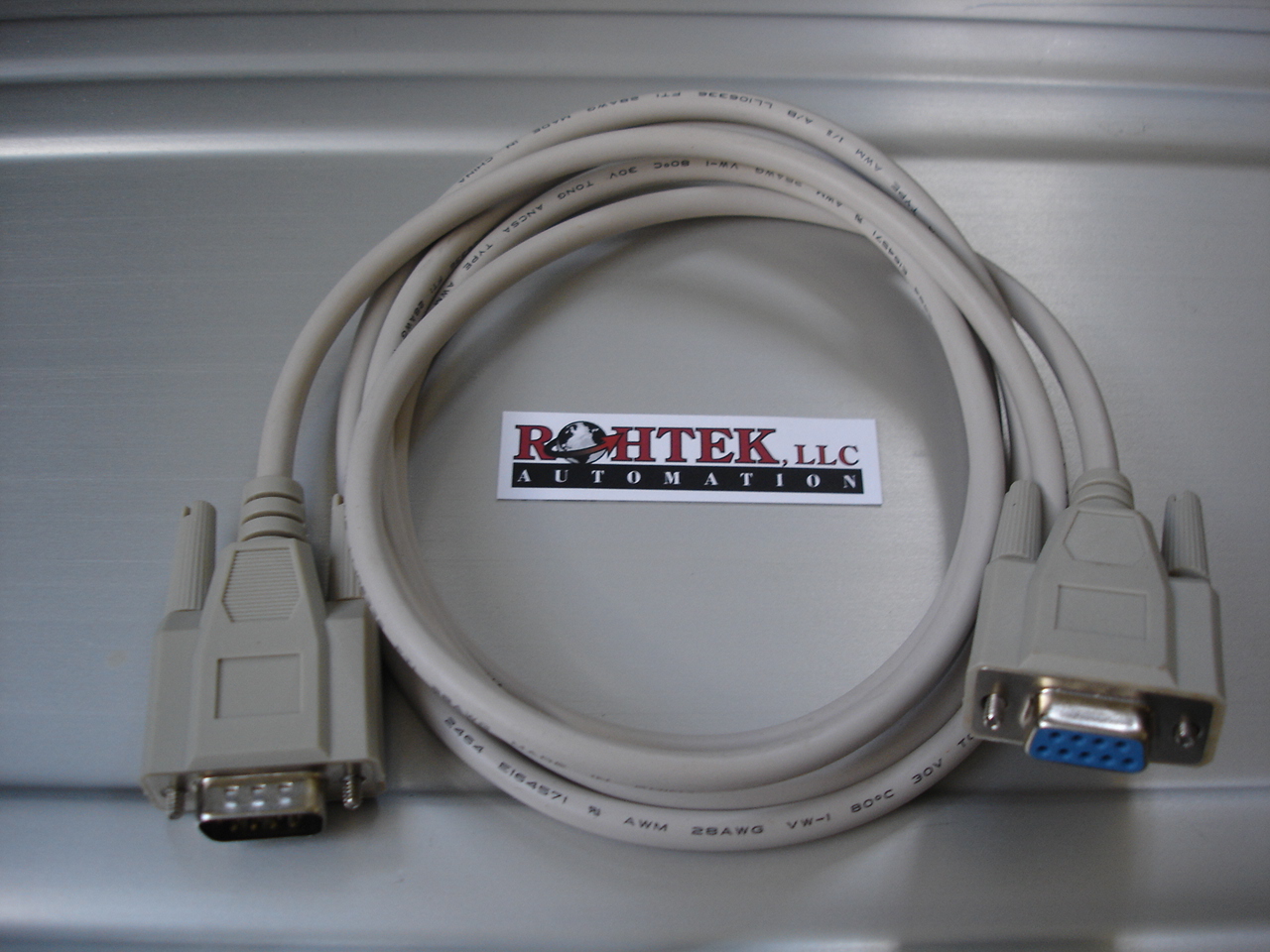

RS232 - 5'

  • 201109-002 REV.A
  • SHIELDED CABLE, 24AWG, 5'
  • P1 DB FEMALE 9 PIN
  • P2 DB MALE 9 PIN

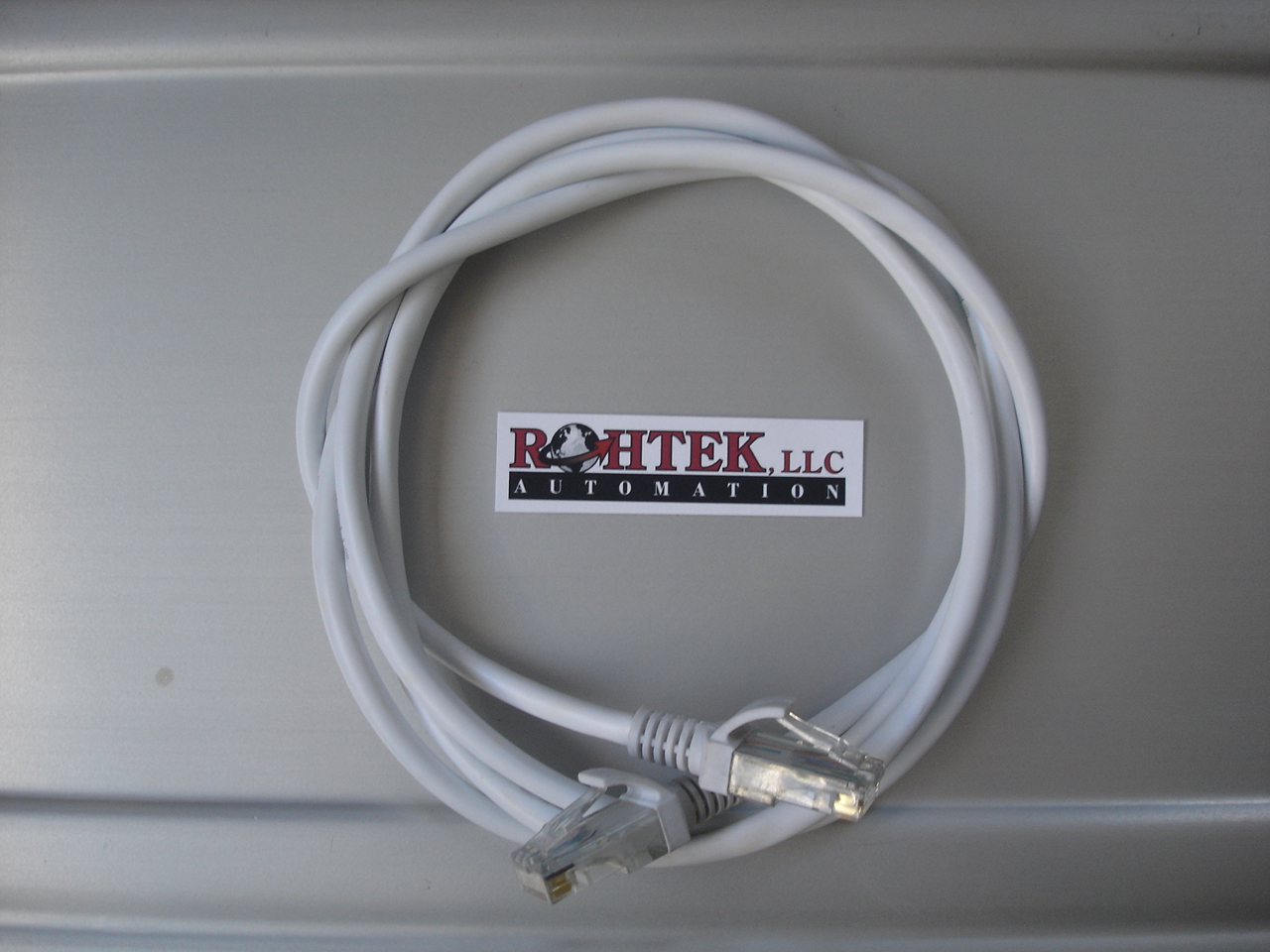

ETHERNET, CAT5E, RJ-45 PLUG - 5'

  • 201109-003 REV.A
  • SHIELDED CABLE, 26AWG, 5'
  • RJ-45 PLUG

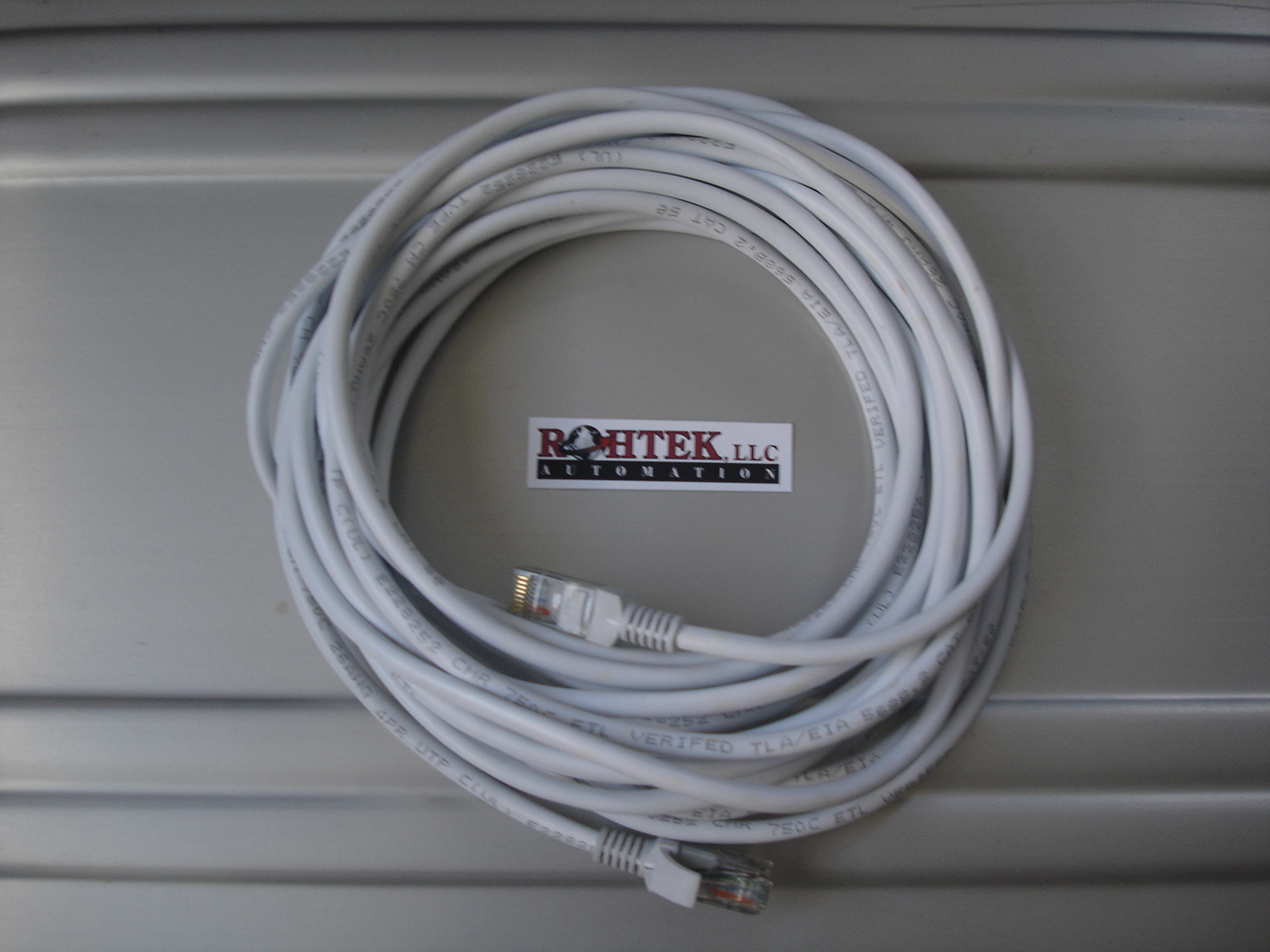

ETHERNET, CAT5E, RJ-45 PLUG - 25'

  • 201109-004 REV.A
  • SHIELDED CABLE, 26AWG, 5'
  • RJ-45 PLUG
    • >

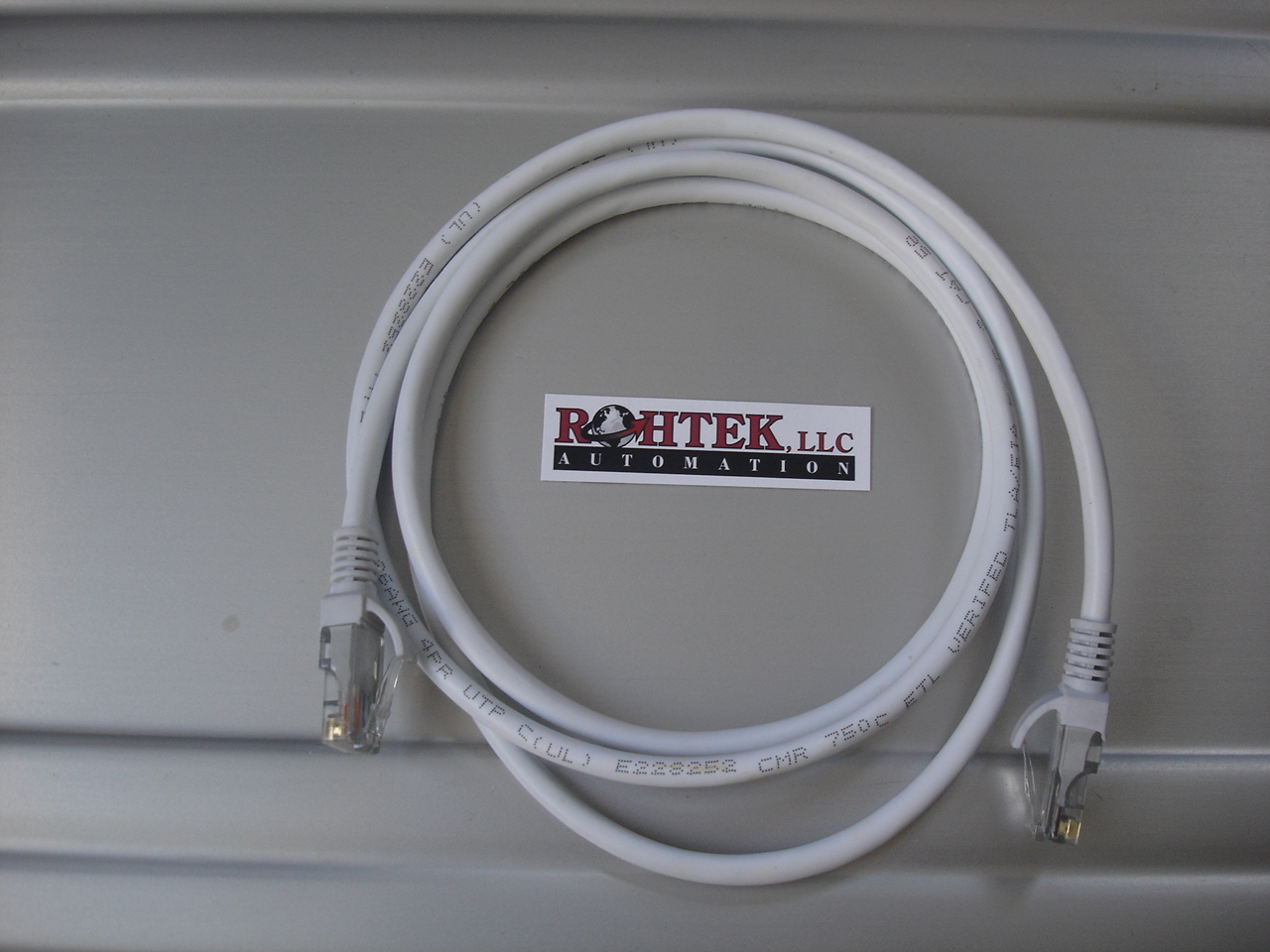

ETHERNET, CAT5E, CROSSOVER,RJ-45 PLUG - 5'

  • 201109-005 REV.A
  • SHIELDED CABLE, 26AWG, 5'
  • RJ-45 PLUG

ETHERNET, CAT5E, CROSSOVER,RJ-45 PLUG - 25'

  • 201109-006 REV.A
  • SHIELDED CABLE, 26AWG, 25'
  • RJ-45 PLUG
